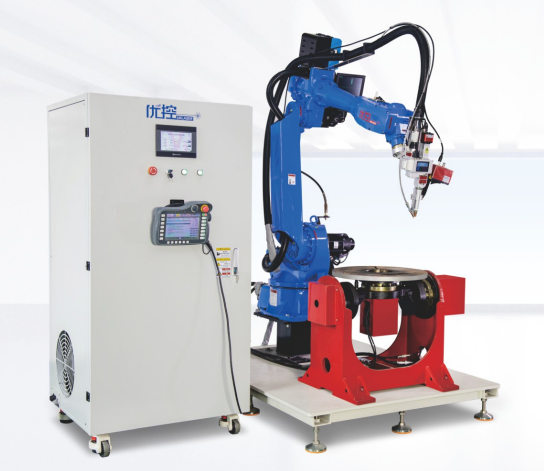

Robot Laser Welding Machine — Model UK-JXH18

Product Overview

The UK-JXH18 Robot Laser Welding Machine is an advanced industrial-grade robotic arm laser welding system developed by Youkong. It represents the next generation of automated laser welding technology, combining the high-precision motion control of a robotic manipulator with the power and versatility of a fiber laser welding system. This machine is purpose-built for manufacturers who require consistent, high-quality welds at scale — eliminating the variability and limitations of manual handheld welding while dramatically improving production efficiency, weld quality, and operator safety.

The UK-JXH18 is a fully programmable robotic welding cell capable of handling a wide range of metal materials and joint types. It is designed for continuous industrial operation, making it an ideal solution for high-throughput production lines in sectors such as automotive manufacturing, aerospace, household appliances, sheet metal fabrication, elevator components, and structural engineering.

Compatible Materials

The UK-JXH18 is engineered to weld a broad spectrum of metallic materials, including:

• Stainless Steel — widely used in food equipment, medical devices, and industrial piping
• Carbon Steel — common in structural components, automotive parts, and machine frames
• Alloy Steel — used in aerospace, tooling, and high-strength industrial components
• Aluminum & Aluminum Alloys — critical in lightweight automotive and aerospace fabrication
• Galvanized Sheet Metal — essential in HVAC, construction, and home appliance manufacturing

This multi-material capability makes the UK-JXH18 a highly versatile asset on any production floor, removing the need for multiple specialized welding machines.

Laser Power & Welding Modes

The machine offers a wide power range of 1500W to 6000W, giving operators and engineers the flexibility to configure the system for both delicate thin-sheet welding and heavy-duty thick-plate joining.

It supports two core operating modes:

• Continuous Wave (CW) Mode: Delivers a steady, uninterrupted laser beam — ideal for long seam welds, butt joints, and applications where consistent heat input is required. This mode maximizes welding speed and throughput.
• Pulse Mode: Emits laser energy in timed pulses, allowing precise control over heat input. This is especially valuable when welding heat-sensitive materials, thin sheets, or applications where minimizing the heat-affected zone (HAZ) and distortion is critical.

The ability to switch between these two modes means the UK-JXH18 can be optimized for a wide variety of weld geometries, material types, and quality requirements within a single production environment.

Welding Thickness Capability

The UK-JXH18 handles material thicknesses ranging from 0.5mm to 8mm. This range covers the vast majority of industrial sheet metal and structural welding applications:

• At the lower end (0.5–2mm), the machine excels at precision welding of thin sheets, enclosures, and fine components without burn-through or warping.
• At the upper end (up to 8mm), the high-power configurations (up to 6000W) enable deep penetration welding on thicker structural or heavy-duty components.

This makes the system suitable for both fine fabrication work and heavier manufacturing tasks without requiring equipment changes.

Spot Size Adjustment

One of the key technical strengths of the UK-JXH18 is its adjustable laser spot size, ranging from 0.2mm to 5mm. This is a significant advantage for production flexibility:

• A smaller spot (0.2–0.5mm) concentrates energy into a tiny area, enabling extremely precise, narrow welds with minimal heat spread — ideal for intricate components, tight joints, and precision parts.
• A larger spot (1–5mm) distributes energy over a wider area, which is useful for gap bridging, fillet welds, and applications where a wider weld bead is acceptable or preferred.

The ability to tune the spot size on-the-fly means operators can adapt the machine's performance to each specific welding task without hardware changes, maximizing both productivity and weld quality.

Robotic Manipulator & Travel Range

The robotic manipulator arm is the mechanical core of the UK-JXH18. With a maximum travel distance of up to 2.0 meters, the arm can reach across large workpieces and complex three-dimensional weld paths — far exceeding what is achievable with fixed-axis gantry systems.

The manipulator provides multi-axis movement, enabling the welding head to approach joints from virtually any angle. This is especially important for:

• 3D welding paths on complex geometries such as curved surfaces, tubular structures, and multi-face assemblies
• Hard-to-reach weld joints that would be impossible or impractical with a flat-bed or fixed-head laser welder
• Consistent torch angle control, which directly influences weld bead shape, penetration depth, and fusion quality

The robotic arm is programmable via teach pendant or offline simulation software, allowing engineers to define and save complex weld programs that can be recalled instantly for repeat production runs. This eliminates setup time and ensures absolute repeatability from part to part.

Precision & Repeatability

The manipulator's repeat positioning accuracy ensures that every weld is placed in exactly the same location, pass after pass. This level of consistency is impossible to achieve with manual welding and is critical in industries such as:

• Automotive — where structural welds must meet strict safety and dimensional standards
• Aerospace — where tolerances are measured in fractions of a millimeter
• Electronics & Appliances — where aesthetic and functional weld quality must be uniform across thousands of units

Key Industry Applications

The UK-JXH18 is deployed across a wide range of industries and use cases:

Advantages Over Traditional Welding

Compared to manual MIG/TIG welding or even standard handheld laser welding, the UK-JXH18 offers substantial advantages:

• Zero operator fatigue — the robot works continuously without rest
• Consistent weld quality — every weld is identical, eliminating human error
• Higher production speed — robotic welding is significantly faster than manual processes
• Reduced post-weld processing — clean, spatter-free laser welds often require no grinding or finishing
• Improved worker safety — operators are removed from direct exposure to laser radiation, fumes, and heat
• Lower long-term costs — reduced scrap, rework, and labor costs over the machine's lifespan
