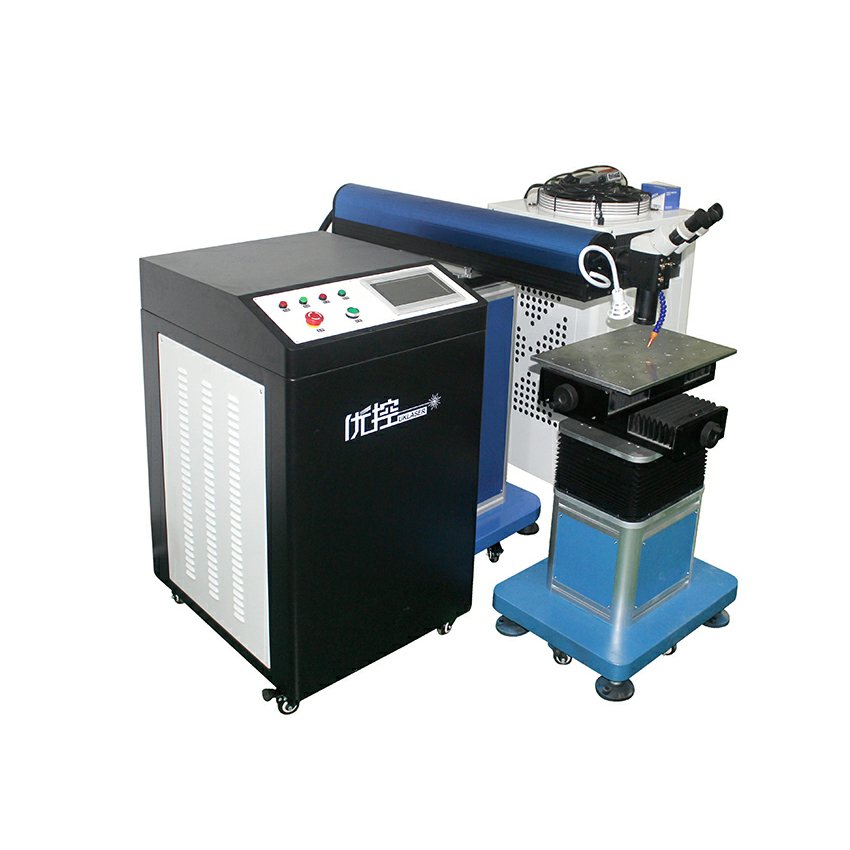

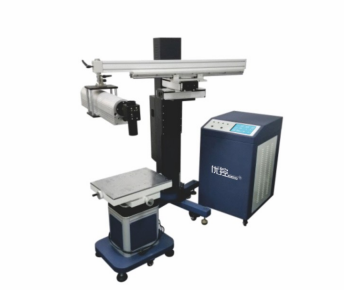

Mold Laser Welding Machine — Models UK-MW200 to UK-MW600

Product Overview

The Mold Laser Welding Machine series — Models UK-MW200 through UK-MW600 — is a family of precision, purpose-built laser welding systems engineered by Youkong  specifically for the exacting demands of mold repair, mold modification, tooling restoration, and precision die welding applications. This series represents Youkong's most specialized and technically refined laser welding product line — machines designed not for general fabrication or high-speed production welding, but for the uniquely demanding world of precision mold and tooling work, where microscopic weld deposits must be placed with surgical accuracy on high-value, dimensionally critical tool steel components that cannot be damaged, distorted, or thermally compromised during the repair process. Mold and die repair is one of the most technically demanding applications of laser welding technology. The workpieces — injection molds, die casting tools, stamping dies, forging dies, extrusion dies, and precision tooling components — represent enormous investments of engineering time, precision machining, and expensive tool steel material. A single injection mold for an automotive component may represent hundreds of thousands of dollars in material and machining costs and weeks or months of manufacturing lead time. When such a tool develops a crack, a worn surface, a chipped edge, a damaged cavity feature, or a dimensional deviation that renders it unable to produce parts within specification, the manufacturer faces a critical decision: scrap the tool and bear the full cost and lead time of replacement, or repair it. Mold laser welding is the technology that makes repair the viable, preferred option. By enabling the precise deposition of weld material exactly where it is needed — in quantities as small as a fraction of a cubic millimeter — with minimal heat input to the surrounding tool, laser welding can restore a damaged or worn mold to full production capability with far less cost, time, and material consumption than tool replacement. The UK-MW series is engineered to deliver this capability at the highest possible level of precision, control, and reliability — making it the tool of choice for mold repair shops, toolrooms, and in-house maintenance operations across every industry that depends on precision tooling. The UK-MW series is available in four power configurations — UK-MW200 (200W), UK-MW300 (300W), UK-MW400 (400W), and UK-MW600 (600W) — each sharing the same core precision architecture, microscope observation system, water-cooled design, and precision workbench, but differing in laser power to address different mold repair application requirements. This range of configurations ensures that mold repair professionals can select the machine that best matches their specific application requirements — from the most delicate fine-feature repair work to more demanding deep-penetration repair on heavier tool steel components.

The World of Mold Repair — Understanding the Application

To fully appreciate what the UK-MW series is designed to do and why its specific technical capabilities are so important, it is essential to understand the nature of mold repair as an industrial process and the unique technical challenges it presents to any welding technology.

What Molds Are and Why They Fail

Industrial molds and dies are precision tools that give shape to manufactured products. They are manufactured from high-quality tool steels — H13 hot work tool steel, P20 plastic mold steel, D2 cold work tool steel, S7 shock-resistant steel, 420 stainless steel, and other specialty materials selected for their specific combination of hardness, toughness, wear resistance, and thermal fatigue resistance. These steels are machined, ground, and polished to dimensional tolerances measured in micrometers, and their surface finishes may be polished to mirror quality, textured, or precisely machined to specific surface roughness specifications. Despite the quality of their construction, molds and dies are subject to a range of failure modes that can compromise their ability to produce parts within specification: Cracking and Fracture Thermal fatigue cracking is the most common failure mode in hot work tooling — die casting dies, forging dies, and hot stamping tools. Repeated rapid heating and cooling cycles during production gradually develop thermal fatigue cracks in the tool surface. These cracks can propagate into the tool body, causing structural weakening, part quality defects (flash at crack locations), and ultimately catastrophic tool failure if not repaired. Cold work tools — stamping dies, cutting dies, forming tools — are subject to fatigue cracking from cyclic mechanical loading, particularly at stress concentrations such as sharp internal corners and thin cross-sections. Surface Wear and Erosion Continuous production wears the surface of mold cavities and die faces. Abrasive wear from filled polymers (glass-filled, mineral-filled, or carbon-filled resins) in injection molding gradually erodes mold cavity surfaces — changing the dimensions of molded parts, degrading surface finish quality, and eventually rendering the mold unable to produce parts within dimensional tolerances. Die casting dies are subject to severe erosion and washout at gate areas where molten metal enters the die at high velocity and temperature — eroding the die steel and creating dimensional deviations that result in casting defects. Chipping and Impact Damage Brittle tool steels — particularly those that have been through-hardened to high hardness levels — can chip or fracture when subjected to impact loading from part ejection problems, handling damage, foreign object impacts, or the stresses of improper die setup or press overload. Dimensional Deviation and Engineering Changes Molds sometimes require modification — adding material to change part dimensions, filling in gates or runners that need to be repositioned, adding or modifying parting line geometry, or making engineering changes to the molded part design that require changes to the mold cavity geometry. Laser welding enables these modifications to be made by adding precisely controlled amounts of weld material to specific locations on the mold. Surface Pitting and Corrosion Molds used with corrosive materials — certain polymers that release corrosive by-products during processing, or tools exposed to environmental moisture during storage — can develop surface pitting and corrosion that degrades part surface quality and creates stress concentration sites for fatigue crack initiation.

Why Mold Repair Is So Technically Demanding

Repairing any of these damage types by laser welding is far more technically demanding than general fabrication welding for several compelling reasons: The Material Is Difficult to Weld Tool steels — the materials from which molds are made — are among the most challenging steels to weld. Their high carbon and alloy content makes them highly sensitive to hydrogen-induced cracking (cold cracking) if welding is performed without adequate preheat and post-heat treatment. Their hardness means that the heat-affected zone (HAZ) of a weld may be subject to localized softening (tempering of the hardened structure) or hardening (formation of brittle martensite) — both of which can compromise the performance of the repaired area. The laser welding process — with its extremely localized heat input and rapid cooling — significantly mitigates these metallurgical challenges compared to conventional welding, but the material's sensitivity still demands careful process control. The Heat Input Must Be Minimized The most critical constraint in mold repair welding is the requirement to minimize heat input to the tool. Excessive heat input causes:

• Thermal distortion: The mold warps or distorts dimensionally due to the thermal stresses induced by welding — potentially rendering the repaired mold dimensionally out of specification even if the weld itself is perfect
• HAZ softening: Heat conducted into the surrounding hardened tool steel tempers the martensite in the heat-affected zone, creating a zone of reduced hardness adjacent to the weld — which may wear faster in service than the properly hardened surrounding material
• Cracking: Rapid thermal gradients in tool steels can initiate new cracks in the HAZ if the thermal stresses exceed the material's fracture toughness
• Surface damage: Heat conducted to the polished or textured mold surface can cause oxidation discoloration, surface scaling, or thermal distortion of precision surface features

The pulsed laser welding process used in the UK-MW series is specifically engineered to minimize heat input — depositing weld energy in precisely timed, controlled pulses that melt a tiny volume of filler and base material and then allow rapid cooling before the next pulse. This pulsed approach is the key to achieving the extremely localized heating that mold repair requires. The Dimensional Control Is Extreme A mold repair weld must deposit material in exactly the right location — not 0.5mm off, not 0.2mm off, but exactly at the damaged area, with precisely the right amount of material to restore the mold surface to its correct dimensional profile. In practice, this means placing weld deposits measured in tenths of millimeters at specific locations within complex three-dimensional mold cavities — a task that demands both the magnification of a microscope observation system and the precision of a well-controlled laser delivery system. The Weld Must Be Machinable and Finishable After welding, the repair area must be machined, ground, or polished back to the correct mold surface geometry and finish. This means the weld deposit must be compatible with the machining and finishing operations that will follow — having appropriate hardness, freedom from porosity and inclusions, and a microstructure that responds appropriately to grinding, EDM, and polishing.

The UK-MW Series Power Range — 200W to 600W

The UK-MW series spans a power range from 200W to 600W — a range that is specifically selected for mold repair applications and reflects the very different power requirements of precision mold repair welding compared to structural fabrication welding. In mold repair welding, the goal is not to maximize welding speed or penetration depth — it is to deposit precisely controlled amounts of weld material with the minimum possible heat input to the surrounding tool. This requires relatively low average powers combined with precisely controlled pulse parameters — exactly what the UK-MW series delivers across its 200W to 600W power range.

UK-MW200 — 200W

The UK-MW200 is the entry-level model in the series and the choice for the most delicate, precision-critical mold repair applications: Optimal Applications:

• Repair of very fine mold features — sharp edges, fine textures, delicate lettering and surface details, tiny cavity features measured in tenths of millimeters
• Welding of thin-walled mold sections where the thermal mass is very low and even moderate heat input could cause distortion
• Repair of highly polished mold surfaces where minimizing the heat-affected zone and post-weld polishing area is critical
• Precision repair of small molds — molds for miniature components, medical device molds, precision electronic component molds — where the small size means that heat from welding can affect the entire mold if not carefully controlled
• Repair of very fine cracks — hairline cracks measured in micrometers — where only the smallest, most precisely controlled weld deposits are appropriate
• Welding of precious or exotic tool materials that are particularly sensitive to heat input

The 200W power level supports very short pulse durations and very small pulse energies — enabling weld spot sizes at the lower end of the 0.1–3mm welding depth range and the finest possible heat input control.

UK-MW300 — 300W

The UK-MW300 extends the UK-MW200's capabilities to a broader range of mold repair applications while maintaining the series' defining precision characteristics: Optimal Applications:

• General-purpose precision mold repair across a wide range of tool types and sizes — the most versatile configuration in the series for a mixed mold repair environment
• Repair of medium-sized mold features — corner chips, edge damage, surface pitting, and crack repair on standard injection molds, die casting dies, and stamping tools
• Build-up welding for dimensional restoration on worn gate areas, ejector pin pockets, and worn parting line surfaces
• Repair of moderately complex mold geometries where a balance of precision and deposition efficiency is needed
• Mold modification and engineering change welding — filling gates, modifying cavity features, adding material for dimensional changes

The 300W power level provides more deposition efficiency than the 200W model — enabling faster repair of larger damaged areas — while maintaining the precision pulse control needed for high-quality mold repair work.

UK-MW400 — 400W

The UK-MW400 brings increased power and deposition capability to demanding mold repair applications: Optimal Applications:

• Repair of larger damaged areas — significant surface erosion, large crack networks, substantial chipping — that require greater amounts of weld material to be deposited
• Repair of large molds — automotive body panel molds, large structural component molds, heavy die casting dies — where the greater thermal mass of the workpiece can absorb more heat without distortion
• Deep crack repair requiring multi-pass welding with deeper individual weld penetration
• Build-up welding of heavily worn surfaces on high-production tooling where wear depth may be significant
• Repair of complex tool steel alloys that require higher energy densities for effective fusion

The 400W power level supports higher deposition rates — enabling more material to be deposited per unit time — while the precision pulse control system maintains the heat input discipline that distinguishes laser mold repair welding from conventional repair methods.

UK-MW600 — 600W

The UK-MW600 is the highest-power configuration in the UK-MW series — the choice for the most demanding, large-scale mold repair challenges: Optimal Applications:

• Repair of the most severely damaged tooling — large surface erosion on die casting gate areas, extensive crack networks on hot work tooling, major impact damage requiring significant material build-up
• Large-format tooling repair — very large injection molds, heavy forging dies, large stamping tools — where the geometry and mass of the workpiece demand higher power for effective fusion
• High-productivity mold repair environments — large toolrooms processing many molds — where repair throughput is important alongside repair quality
• Repair requiring deep weld penetration at the upper end of the 0.1–3mm depth range
• Repair of highly alloyed tool steels with high reflectivity or high thermal conductivity that resist energy coupling at lower power levels

The 600W configuration brings maximum capability to the UK-MW series while maintaining all the precision features — microscope observation, pulse width control, water cooling, precision workbench — that define the series as a mold repair specialist rather than a general fabrication tool.

Laser Wavelength — 1064nm

All models in the UK-MW series operate at a laser wavelength of 1064nm — the fundamental output wavelength of neodymium-doped laser gain media. This wavelength selection is not arbitrary — it reflects a carefully considered technical judgment that 1064nm is the optimal wavelength for precision mold repair welding applications.

Why 1064nm Is Ideal for Mold Repair Welding

Optimal Metal Absorption At 1064nm, tool steels and filler wire materials exhibit strong laser energy absorption — efficiently coupling the laser energy into the melt pool and ensuring that a high fraction of the incident laser power is converted to useful welding work rather than being reflected away from the workpiece surface. High absorption efficiency at the welding spot means that for a given desired weld deposit energy, the UK-MW series can use a lower total power level — minimizing the heat input to the surrounding material. Excellent Focusability to Small Spot Sizes The 1064nm wavelength can be focused to spot sizes as small as a fraction of a millimeter — enabling the precise, localized energy delivery that mold repair welding requires. The focused spot defines both the minimum weld bead width and the energy density at the weld zone — a small, well-focused spot creates the high energy density needed for clean fusion while keeping the heated zone extremely small. Fiber Delivery for Maximum Flexibility The 1064nm wavelength is efficiently transmitted through standard silica optical fibers — enabling flexible fiber optic delivery from the laser resonator to the welding head. In the UK-MW series, this fiber delivery allows the welding head to be positioned precisely over any area of the mold surface under the microscope — without any mechanical constraints from a rigid beam delivery path that would limit access to complex mold geometries. Compatibility with Pulsed Operation Nd:YAG lasers and Nd:fiber lasers operating at 1064nm are particularly well-suited to pulsed operation — the ability to produce precisely timed, shaped pulses of laser energy. The pulsed operation mode is fundamental to mold repair welding because it enables the extremely localized, controlled heat deposition that minimizes the thermal impact on surrounding tool steel. The 1064nm gain medium's energy storage characteristics enable the generation of pulses with independently controllable pulse width (duration) and peak power — giving the UK-MW series the precise pulse shaping control that mold repair demands.

Welding Depth Range — 0.1mm to 3mm

The UK-MW series achieves a welding depth range of 0.1mm to 3mm — a specification that defines the range of weld penetration depths achievable with the series, from the most superficial surface deposit to a weld that penetrates 3mm into the tool steel substrate.

Understanding Welding Depth in Mold Repair

Shallow Depths — 0.1mm to 0.5mm At the shallow end of the welding depth range, the UK-MW series deposits weld material with minimal penetration into the substrate — barely melting the base material surface while fusing the filler wire deposit to it. This shallow depth capability is critical for:

• Surface finish restoration: Restoring polished or textured mold surfaces that have developed pitting, scratches, or minor surface damage — where only a thin surface layer needs to be replaced without disturbing the underlying material
• Fine feature repair: Rebuilding very fine mold features — sharp edges, fine lettering, delicate surface details — where weld deposit depth must be precisely matched to the height of material lost
• Thin-section welding: Repairing thin walls, thin ribs, and thin mold sections where deeper penetration would risk burn-through or excessive heat input to the section
• Cosmetic repair: Addressing surface defects that affect part appearance but do not compromise mold structural integrity

Mid-Range Depths — 0.5mm to 1.5mm Mid-range welding depths cover the majority of standard mold repair applications:

• Crack repair: Most mold cracks that require repair have widths and depths in this range — the weld must penetrate sufficiently to fuse across the crack and create a sound repair, but does not need to penetrate deeply into the undamaged material
• Edge chip repair: Chips and corner fractures typically have depths in the 0.5–1.5mm range — the weld must fill the void left by the chip and restore the correct edge geometry
• Gate area erosion: Die casting gate erosion and injection mold gate wear commonly create damaged areas in this depth range
• Parting line repair: Parting line damage, flash grooves, and worn parting surfaces typically require weld depths in this range

Deep Welds — 1.5mm to 3mm The upper end of the welding depth range addresses the most severe mold damage scenarios:

• Deep crack repair: Significant cracks that have propagated deep into the tool steel require deep weld penetration to achieve complete fusion across the crack depth
• Severe erosion repair: Die casting dies with severe gate washout or erosion may require deep material build-up to restore the correct tool geometry
• Major impact damage: Large chips, fractures, and impact damage may require multiple passes of deep-penetration welding to restore the damaged area
• Heavy build-up for dimensional restoration: Significant dimensional changes or corrections may require substantial material addition — achieved through multiple passes of deep welds

The ability to work across this entire 0.1–3mm depth range with the same machine — adjusting pulse width, power, and defocus to move between shallow and deep weld regimes — gives the UK-MW series the versatility to address the full spectrum of mold damage types that a mold repair shop encounters.

Pulse Width Control — ≤20ms

The UK-MW series provides pulse width control up to a maximum of ≤20ms (milliseconds) — a specification that defines the maximum duration of individual laser pulses that the system can produce. Pulse width is one of the most critical process parameters in mold repair laser welding, and the ability to control it precisely across a wide range is a key capability of the UK-MW series.

Understanding Pulse Width in Mold Repair Welding

What Pulse Width Controls In pulsed laser welding, the laser does not fire continuously — it produces a series of individual pulses, each delivering a precisely controlled burst of laser energy. The pulse width (duration) of each pulse, combined with the pulse peak power, determines the total energy delivered per pulse — and this energy determines both the size of the weld spot and the depth of penetration.

• Short pulses (0.1–2ms): Very short pulses deliver energy very rapidly — creating extremely high instantaneous power density at the weld spot. The high power density creates a very small, intense melt pool that solidifies almost instantly when the pulse ends. Short pulses produce the smallest, most precise weld deposits — ideal for the finest feature repair work where minimum weld bead size is critical. The rapid solidification also minimizes heat conduction into the surrounding material.
• Medium pulses (2–10ms): Medium pulse widths balance energy delivery rate with total energy per pulse — creating somewhat larger melt pools with slightly more penetration and slightly more heat conduction than short pulses. This range covers the majority of standard mold repair applications — crack repair, edge chip repair, surface pitting repair — where a practical weld deposit size is needed without excessive heat input.
• Long pulses (10–20ms): At the upper end of the pulse width range, long pulses deliver energy over an extended duration — creating larger melt pools with deeper penetration and greater total energy per pulse. Long pulses are used for applications requiring deeper weld penetration and larger weld deposit volumes — severe erosion repair, major crack repair, heavy build-up welding. The ≤20ms maximum pulse width of the UK-MW series provides access to this deeper penetration capability while maintaining the pulse energy control needed for quality mold repair work.

Pulse Shaping

Advanced mold laser welding systems like the UK-MW series support not just pulse width control but also pulse shaping — the ability to program the temporal power profile of each pulse. Rather than a simple rectangular pulse with constant power from start to finish, pulse shaping allows the power to be varied within each pulse — for example:

• Ramp-up profiles: Gradually increasing power at the start of the pulse to gently pre-heat the material before full power is applied — reducing thermal shock in sensitive tool steels
• Ramp-down profiles: Gradually reducing power at the end of the pulse to slow the solidification rate and reduce the risk of hot cracking in high-alloy tool steels
• Spike-plus-tail profiles: A high-power initial spike to initiate melting efficiently, followed by a lower-power tail to maintain and control the melt pool — combining fast melt initiation with controlled solidification

This pulse shaping capability gives experienced mold repair technicians an additional degree of process control — enabling them to optimize the weld process for specific tool steel grades and repair scenarios.

Microscope Observation System

One of the most defining and practically important features of the UK-MW series is its integrated microscope observation system — a capability that fundamentally distinguishes mold repair laser welding from all other forms of laser welding and that is absolutely essential for achieving the precision that mold repair demands.

Why a Microscope Is Essential for Mold Repair Welding

The Scale of the Work Mold repair welding operates at a scale that is at or beyond the limit of the naked human eye. Individual weld deposits may be as small as 0.2–0.5mm in diameter. The features being repaired — fine cracks, small chips, worn edges, surface pitting — may be measured in tenths of millimeters. The precision required in placing weld deposits — hitting exactly the right spot within a complex mold cavity — demands visual magnification that the unaided eye simply cannot provide. Without magnification, the mold repair technician cannot:

• Clearly see the exact location, extent, and geometry of the damage being repaired
• Position the filler wire with the precision needed to place weld deposits exactly where required
• Monitor the melt pool behavior during welding to make real-time adjustments for optimal quality
• Evaluate the quality of each weld deposit immediately after it is made
• Detect fine cracks, porosity, or other defects in the weld deposit that would compromise repair quality

The microscope observation system transforms mold repair from a challenging, imprecise process into a precise, controlled operation where every aspect of the repair can be clearly seen and carefully managed. Working Distance and Magnification The microscope system of the UK-MW series is configured for the specific requirements of mold repair laser welding:

• Adequate working distance: The microscope provides sufficient working distance between the objective lens and the work surface to allow the welding head, filler wire feed, and any shielding gas nozzle to be positioned at the weld point while still being within the microscope's focal range — a critical design requirement that many general-purpose microscopes cannot satisfy
• Appropriate magnification range: The magnification range is selected to cover both the wider-field viewing needed to navigate to the repair location on the mold and the high-magnification detailed viewing needed for precise weld deposit placement and quality assessment
• Coaxial viewing: The ideal mold laser welding microscope system provides coaxial viewing — the operator views the weld point along the same axis as the laser beam, ensuring that what the operator sees through the microscope is exactly what the laser is targeting — eliminating parallax errors that would otherwise cause the actual weld to be offset from the observed aiming point
• Integrated illumination: The microscope system incorporates appropriate illumination of the work surface — enabling clear visibility of the weld zone, the filler wire, and the mold surface features under the high-magnification conditions of the microscope

Operator Interface with the Microscope Working under the microscope is a skilled art — the UK-MW series is designed so that the operator can comfortably position and manipulate both the mold and the filler wire while maintaining ergonomic viewing through the microscope eyepiece. The precision workbench's fine adjustment controls allow the mold to be positioned precisely under the microscope without requiring the operator to remove their eye from the eyepiece — maintaining visual continuity throughout the repair process.

Water-Cooled Design

All models in the UK-MW series employ a water-cooled thermal management architecture — a design choice that directly supports the high-quality, sustained pulsed laser operation that mold repair demands.

The Role of Water Cooling in Mold Repair Laser Welding

Laser Source Thermal Stability The pulsed laser source at the heart of each UK-MW model generates heat during operation — both from the conversion of electrical power to laser light (which is never 100% efficient) and from absorption of any laser energy reflected back from the workpiece. Water cooling maintains the laser gain medium at a stable, controlled temperature — which is critical for pulsed laser systems because the laser's output characteristics (pulse energy, pulse shape, beam quality) are sensitive to the temperature of the gain medium. Temperature-stable operation means that every pulse the laser produces has identical, repeatable characteristics — the same energy, the same shape, the same beam quality — regardless of whether it is the first pulse of the day or the ten-thousandth. This pulse-to-pulse consistency is fundamental to achieving consistent weld deposit quality throughout a repair session. Sustained Operation Capability Mold repair welding sessions can be long — repairing extensive damage on a large mold may require hours of continuous laser operation, with pulses firing at rates of 1–50Hz throughout the repair session. The water cooling system enables this sustained operation by continuously removing the heat generated by the laser source at whatever rate it is being produced — preventing any thermal accumulation that would cause operating temperature to rise and laser performance to degrade. Without adequate cooling, the laser source's operating temperature would gradually rise during extended repair sessions — causing gradual shifts in laser output characteristics that would result in inconsistent weld quality over time. Water cooling eliminates this problem, ensuring that the first weld deposit of a long repair session is made under exactly the same laser conditions as the last. Optical Component Protection The optical components in the laser delivery path — including the output coupler, beam delivery optics, and focusing elements in the welding head — are also thermally managed by the water cooling system. Even a small fraction of the laser energy absorbed by these optical components can cause significant temperature rise if not removed by cooling — potentially causing thermal lensing (a change in the optical power of a lens due to heating that alters beam focus) or, in extreme cases, thermal damage to optical coatings. Water cooling maintains the optical components at stable temperatures throughout operation — preventing thermal lensing effects that would change the beam focus position and spot size during a repair session, and protecting the optical coatings from thermal degradation that would reduce their durability and eventually cause transmission losses. Workpiece Temperature Management During extended mold repair sessions involving many closely spaced weld deposits, there is a risk of gradual heat accumulation in the mold around the repair area — even though each individual pulse has very low heat input, the cumulative effect of many pulses can cause the local temperature to rise if heat is not dissipated between pulses. The UK-MW series' water cooling system can also be used to provide active cooling to the workpiece through the workbench interface — helping to maintain the mold at an appropriately low temperature throughout the repair session and preventing heat accumulation that could cause distortion or HAZ effects.

Precision Workbench — 200×200×300mm

The UK-MW series is equipped with a precision workbench with a work envelope of 200mm (X) × 200mm (Y) × 300mm (Z) — a carefully dimensioned working space that accommodates the majority of mold components and tooling assemblies encountered in mold repair applications.

Workbench Design Philosophy

The precision workbench of the UK-MW series is not a simple fixed table — it is a multi-axis precision positioning system specifically designed for the requirements of mold repair laser welding: Multi-Axis Positioning The workbench provides controlled movement in X, Y, and Z axes — enabling the operator to position any point on the mold surface precisely under the laser welding head and within the microscope's field of view. The positioning controls are typically fine-thread mechanical adjusters or motorized actuators that provide smooth, precise movement with high positional resolution — enabling the mold to be moved in increments as small as a few micrometers to position the weld point exactly. Rotational Capability Many mold repair applications require access to mold surfaces that are not parallel to the horizontal workbench plane — side walls of cavities, angled parting surfaces, drafted sidewalls. The workbench's tilt and rotation capability allows the mold to be oriented so that the target repair surface is presented perpendicular to the laser beam axis — the optimal orientation for precise, symmetric weld deposits. Stability and Rigidity The precision workbench is constructed for maximum stability — minimizing any vibration, flex, or settling that would cause the mold to move during the welding process. Any movement of the mold while a weld pulse is being fired would misplace the weld deposit and compromise repair quality. The workbench's rigid construction ensures that the mold remains precisely in position from the moment of laser aiming to the moment of weld solidification. Work Envelope — 200×200×300mm The 200×200mm horizontal work area accommodates most mold inserts, small to medium mold components, and individual cavity blocks. The 300mm vertical clearance provides ample space for mold components with significant height — deep cavity molds, tall cores, and large mold inserts. For applications requiring repair of mold components larger than the standard work envelope, the workbench design may be adapted — either through custom workbench configurations or through the use of external positioning fixtures that allow large mold assemblies to be supported and positioned relative to the welding head.

Filler Wire and Material Compatibility

The UK-MW series supports the use of precision laser welding filler wire — thin wires of various tool steel, stainless steel, and specialty alloy compositions that are manually fed into the weld pool during the repair process. The selection of the correct filler wire is a critical aspect of mold repair welding — the filler material must be compatible with the base tool steel, must achieve appropriate hardness in the as-welded or post-weld heat treated condition, and must support the machining, grinding, and polishing operations required to restore the mold surface after welding.

Common Filler Materials for Mold Repair

Tool Steel Filler Wires

• H13 filler wire for repair of H13 and similar hot work tool steels used in die casting dies, hot forging dies, and hot extrusion tooling
• P20 filler wire for repair of P20 and similar pre-hardened plastic mold steels — the most widely used mold steel for injection molding
• D2 filler wire for repair of D2 and similar high-carbon, high-chromium cold work tool steels used in blanking dies, forming dies, and cold extrusion tooling
• 420 stainless steel filler wire for repair of stainless steel molds used in medical, food processing, and corrosion-resistant applications

Specialty Filler Materials

• Maraging steel filler wires for repair of ultra-high-strength tooling and precision molds requiring maximum hardness after aging treatment
• Cobalt-based alloy wires for repair of severely eroded hot work tooling where exceptional wear and thermal fatigue resistance is required
• Nickel-based alloy wires for repair of tooling subject to extreme temperature or corrosive environments

Filler Wire Diameter Mold repair filler wires are available in very small diameters — typically 0.3mm to 1.0mm — to enable the precise deposition of small quantities of weld material. The wire diameter is selected based on the size of the repair: very fine features and small crack repair use 0.3–0.5mm wire, while larger area build-up repairs use 0.6–1.0mm wire. The UK-MW series' welding head and wire feed system accommodate this range of wire diameters.

Key Application Areas

The UK-MW series addresses a comprehensive range of mold repair and precision tooling applications:

Injection Mold Repair

Injection molds are the primary application domain for the UK-MW series. Applications include:

• Gate and runner repair: Filling gate vestige areas, repairing eroded gate land surfaces, modifying gate geometry, and repairing runner system damage
• Cavity surface repair: Restoring worn, pitted, scratched, or damaged cavity surfaces to the correct dimensional profile and surface finish
• Parting line repair: Repairing flash grooves, worn parting surfaces, and parting line damage that causes flash defects in molded parts
• Core and cavity insert repair: Repairing damaged inserts — chipped edges, cracked surfaces, worn features — that are too expensive or time-consuming to replace
• Ejector system repair: Repairing worn or damaged ejector pin holes, ejector sleeves, and stripper ring surfaces
• Engineering change implementation: Adding material to change cavity dimensions in response to part design changes — modifying undercut geometry, adjusting wall thickness, adding ribs or bosses

Die Casting Die Repair

Die casting dies operate under extremely harsh conditions — high-pressure injection of molten metal at temperatures of 600–700°C (aluminum) or 600–900°C (zinc, magnesium, copper alloys) — and are subject to severe thermal fatigue cracking and erosion:

• Gate and runner erosion repair: Die casting gate areas experience severe erosion from high-velocity molten metal flow — the UK-MW series can build up eroded material and restore correct gate geometry
• Thermal fatigue crack repair: Sealing and filling thermal fatigue crack networks that develop in die surfaces after extended production runs
• Water cooling line proximity repair: Repairing cracks or erosion near cooling line boundaries — a particularly challenging repair due to the proximity of water cooling channels that must not be breached
• Overflow and vent repair: Repairing worn overflow pockets and vent channels that affect fill quality and part porosity

Stamping and Forming Die Repair

Stamping and forming dies are subject to mechanical fatigue cracking, chipping, and surface wear:

• Cutting edge repair: Restoring worn or chipped cutting edges on blanking, piercing, and trimming dies — a high-value repair that extends die life and maintains part dimensional accuracy
• Radius repair: Rebuilding worn forming radii that have changed dimension due to wear — causing part dimensional deviations
• Crack repair: Repairing fatigue cracks at stress concentration points — inside corners, thin sections, and areas of high cyclic stress

Forging Die Repair

Forging dies operate under the most extreme mechanical and thermal conditions of any tooling type:

• Flash land repair: Rebuilding worn flash lands that control material flow during forging
• Cavity surface repair: Restoring worn cavity surfaces that have been eroded by repeated impact and flow of hot metal
• Draft surface repair: Rebuilding worn draft surfaces that guide material flow during forging

Precision Tooling and Gauge Repair

Beyond mold and die repair, the UK-MW series is applicable to the repair of any high-value precision tooling:

• Cutting tool repair: Precision rebuilding of worn or chipped carbide and tool steel cutting tools
• Gauge and fixture repair: Repairing precision measuring gauges and fixture components that have been damaged or worn
• Medical device tooling: Repair of precision tooling used in medical device manufacturing — where tooling replacement cost and lead time is high

Advantages Over Conventional Mold Repair Methods

The UK-MW series' laser welding process offers decisive advantages over the conventional mold repair methods it replaces:

Factor	TIG Welding	Electrical De Welding	UK-MW Series Laser Welding
Heat Input	Very High	Medium	Very Low
Distortion Risk	High	Medium	Minimal
HAZ Width	Wide	Medium	Very Narrow
Weld Precision	Low	Medium	Very High
Minimum Deposit Size	~2–3mm	~1mm	0.1–0.2mm
Post-Weld Machining	Extensive	Moderate	Minimal
Preheat Required	Always	Sometimes	Sometimes/Never
Microscope Viewing	Not Used	Not Used	Integrated
Material Versatility	Good	Limited	Excellent
Cosmetic Quality	Variable	Variable	Excellent
Crack Repair Capability	Limited	Limited	Excellent
Operator Skill Required	Very High	High	High but Trainable
