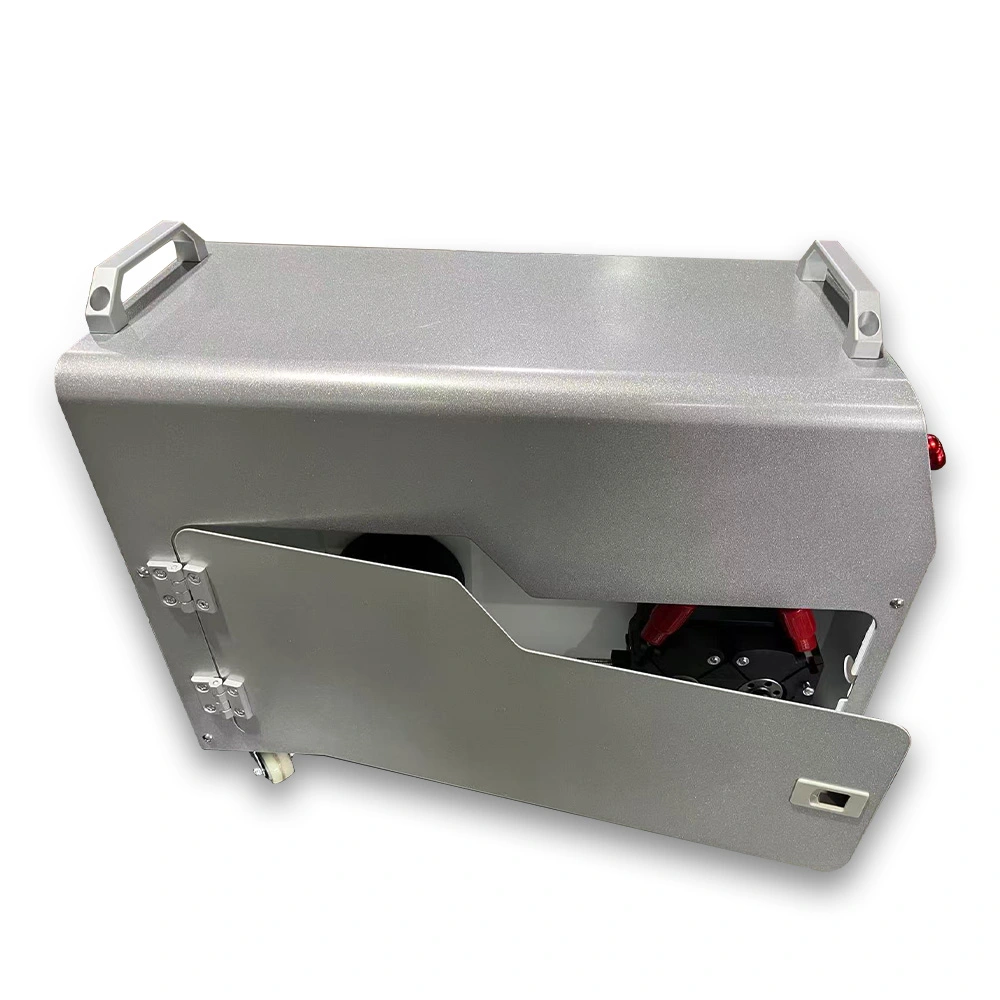

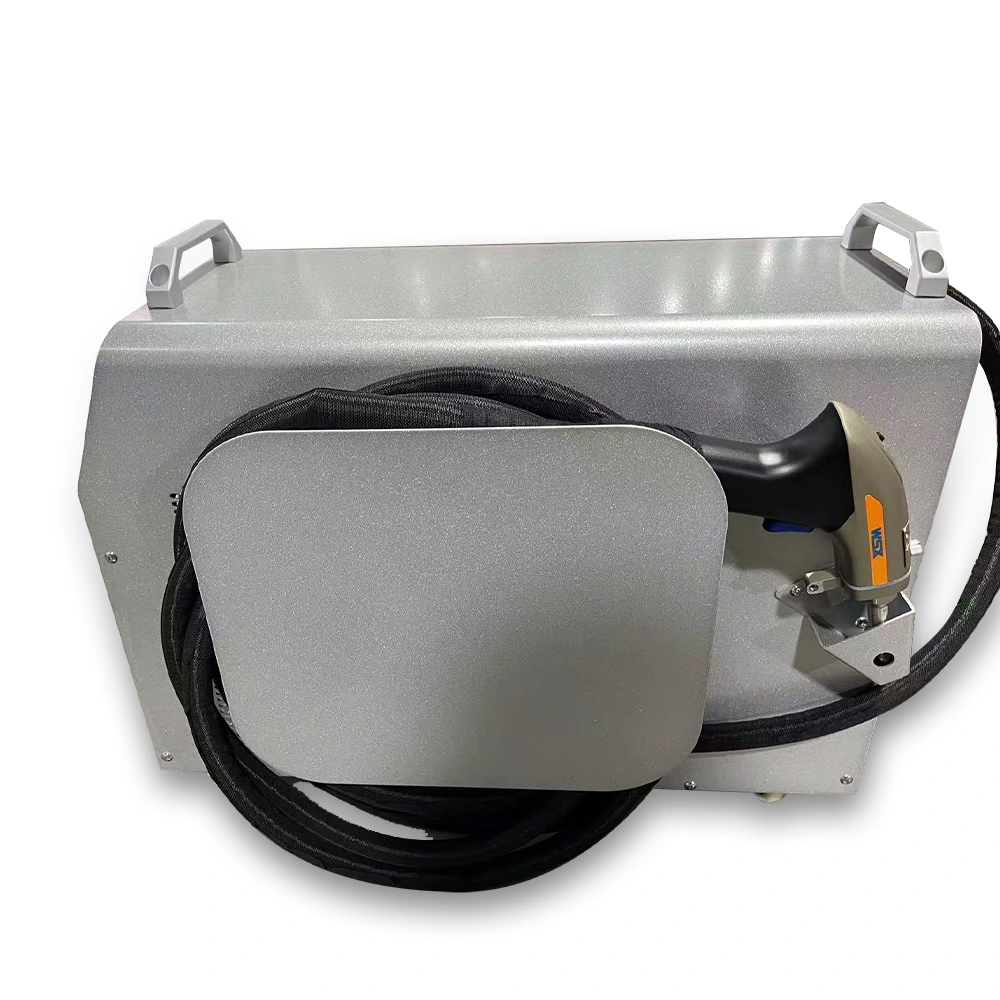

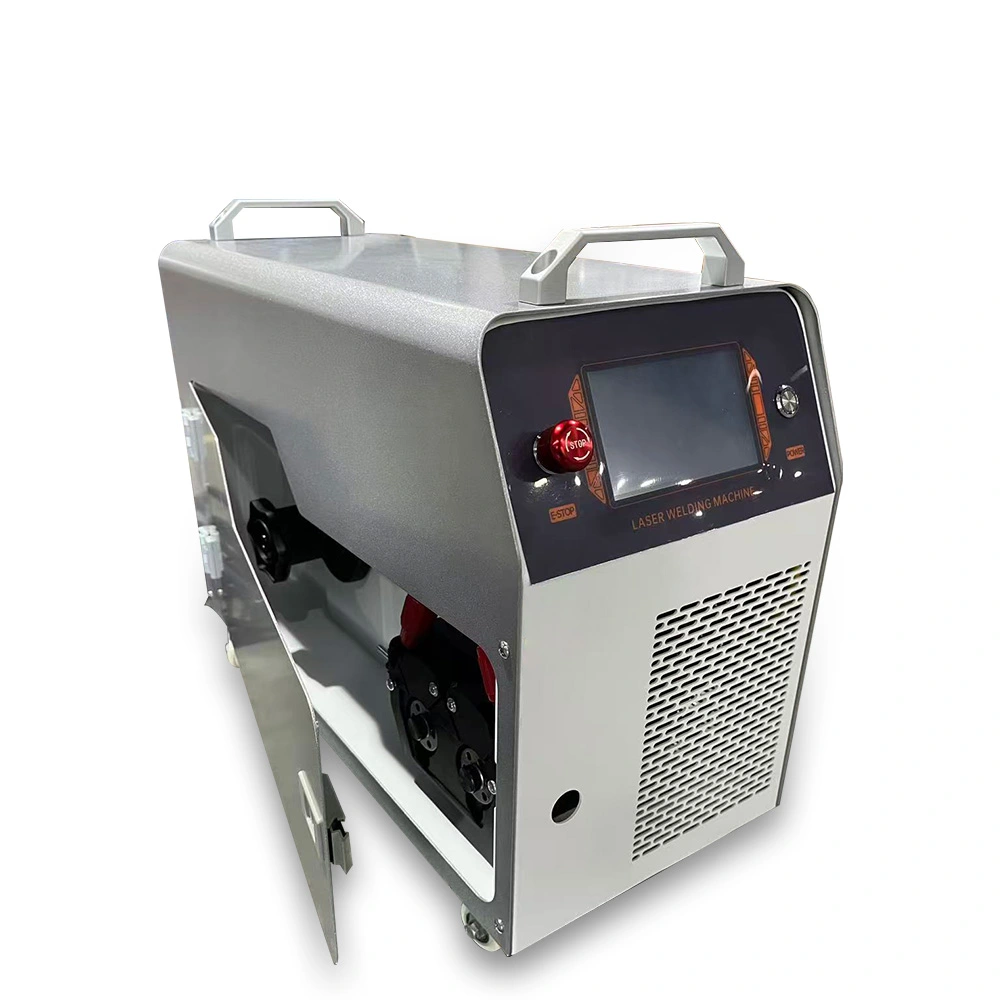

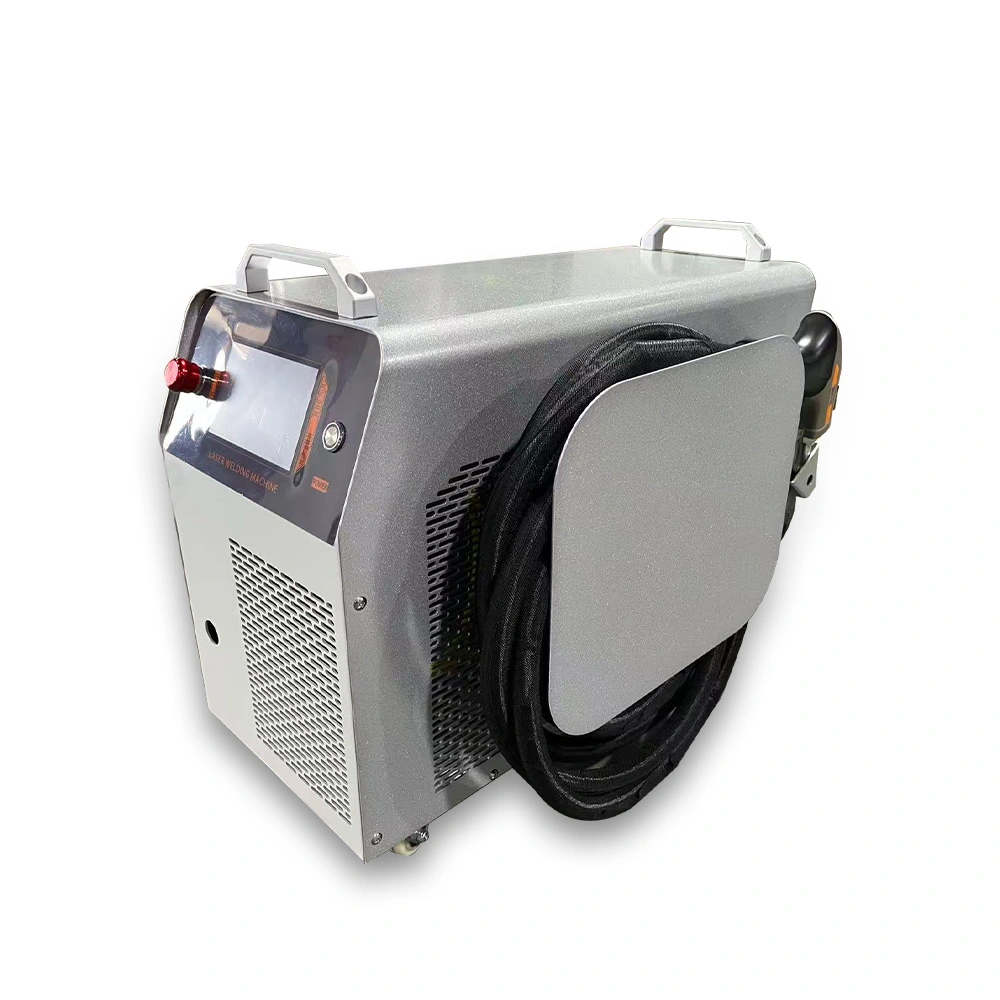

Mini Air-Cooled Handheld Laser Welding Machine — Model UK-MINI

Product Overview

The UK-MINI Mini Air-Cooled Handheld Laser Welding Machine is a compact, lightweight, and highly versatile portable laser welding solution engineered by Youkong  for manufacturers, fabricators, and workshop professionals who demand industrial-grade laser welding performance in the smallest, most deployable package possible. As its name clearly communicates "mini" and  "air-cooled" — this machine is purpose-built around two defining design priorities: extreme compactness and the operational simplicity of air cooling. Together, these characteristics create a laser welding system that breaks down the traditional barriers of cost, complexity, space, and infrastructure that have historically limited access to laser welding technology for smaller manufacturers and workshops. The UK-MINI occupies a unique and strategically important position in Youkong's handheld laser welding product lineup. While larger integrated systems like the UK-MY50 offer greater power and feature richness for heavy industrial environments, the UK-MINI is specifically optimized for applications where physical size, deployment flexibility, and infrastructure independence are the primary requirements. This machine is designed to go anywhere, set up in minutes, and deliver clean, professional laser welds on the materials and thicknesses most commonly encountered in its target industries — all without the need for water cooling infrastructure, large floor space allocations, or complex installation procedures. The UK-MINI is the answer to a question that thousands of fabricators and manufacturers have asked: "How do I get the quality and productivity benefits of laser welding in a machine that fits my space, my budget, and my operational reality?" It brings laser welding within reach of kitchen equipment manufacturers, home appliance producers, furniture fabricators, mold repair shops, stainless steel door manufacturers, and automotive parts suppliers — industries that have traditionally relied on TIG or MIG welding and have been underserved by laser welding solutions that were either too large, too complex, or too expensive for their scale of operation.

The Mini Philosophy — Compact by Design, Not by Compromise

The "mini" designation of the UK-MINI is the result of deliberate, purposeful engineering — not a compromise of performance for the sake of size reduction. Youkong's engineering team designed the UK-MINI from the ground up with compactness as a primary objective, making strategic choices at every level of the machine's architecture to minimize physical size while preserving the laser welding performance characteristics that matter most to its target users.

Dimensions — 540×540×290mm

The UK-MINI measures just 540mm (width) × 540mm (depth) × 290mm (height) — a footprint roughly equivalent to a large desktop computer tower laid on its side, and a height of less than 30 centimeters. This extraordinary compactness is the result of several key engineering decisions:

• High-efficiency fiber laser integration: The fiber laser source at the heart of the UK-MINI is a compact, high-efficiency unit that delivers its rated power output in a significantly smaller physical package than equivalent air-cooled or water-cooled laser sources of previous generations. Advances in fiber laser diode technology, beam combining, and thermal management have enabled this miniaturization without sacrificing laser output quality or reliability.
• Optimized internal component layout: Every internal component — laser source, power electronics, control board, cooling fans, cable management, and user interface — is precisely positioned within the cabinet to minimize wasted space while maintaining adequate thermal separation and serviceability. This level of internal optimization is what allows a complete laser welding system to fit within a 540×540×290mm envelope.
• Air cooling elimination of water cooling infrastructure: By choosing air cooling over water cooling, the UK-MINI eliminates the need for an internal water reservoir, pump, heat exchanger, flow sensors, and associated plumbing — components that add significant volume and weight to water-cooled systems. The air-cooled design uses high-efficiency fans and optimized heat sink geometry to manage thermal loads within the compact cabinet, freeing up internal volume that would otherwise be occupied by cooling infrastructure.
• Integrated cable and hose management: The welding cable connecting the machine to the handheld welding gun is designed to route cleanly from the machine without requiring external cable management accessories — keeping the overall system footprint clean and uncluttered.

The practical implications of these dimensions are profound:

• The UK-MINI can be placed on a standard workbench, shelf, or trolley alongside other workshop equipment — it does not require a dedicated floor position or equipment stand
• It can be positioned directly adjacent to the welding work area, minimizing cable length and reducing tripping hazards from long cables stretching across the workshop floor
• Multiple UK-MINI units can be deployed in a compact production area for parallel welding operations without consuming significant floor space
• The machine can be stored in a standard equipment cabinet or storage rack when not in use
• It can be transported to job sites, customer facilities, or different production areas in a standard vehicle without requiring specialized transport arrangements

Air-Cooled Design — Freedom from Water Infrastructure

The air-cooled design of the UK-MINI is one of its most strategically significant features — a deliberate engineering choice that delivers a cascade of practical operational and economic benefits that make the machine fundamentally more accessible and deployable than water-cooled alternatives.

How Air Cooling Works in the UK-MINI

The UK-MINI's air cooling system uses a carefully designed arrangement of high-efficiency cooling fans, optimized heat sink structures, and intelligent thermal management algorithms to dissipate the heat generated by the fiber laser source and power electronics during welding operation. Ambient air is drawn into the machine through filtered intake vents, passed over the heat-generating components via optimized airflow paths, and exhausted through outlet vents — continuously removing heat and maintaining all internal components within their safe operating temperature ranges. The thermal management system is actively controlled by the machine's microprocessor — fan speeds are adjusted in real time based on measured internal temperatures, ensuring that cooling capacity scales with actual thermal load. This means the fans run quietly and efficiently during light-duty or intermittent welding, and ramp up to full speed during extended high-duty-cycle operation — balancing thermal performance with noise level and fan longevity.

The Operational Advantages of Air Cooling

No Water Supply Required Perhaps the most immediately obvious advantage of air cooling is the complete elimination of the water supply requirement. Water-cooled laser welders need a continuous supply of clean, temperature-controlled water — either from a dedicated water chiller unit, a facility water supply, or a recirculating cooling system. This creates several constraints:

• The machine must be positioned near a water supply point, or a water chiller must be co-located with the machine
• Water supply lines and return lines must be connected, creating a physical tether that limits machine mobility
• Water quality must be monitored and maintained to prevent scale buildup in cooling passages that can lead to overheating and damage
• In cold environments, there is a risk of coolant freezing if the machine is stored or transported in low-temperature conditions

The UK-MINI has none of these constraints. It can be positioned anywhere in a facility, moved freely, and operated immediately — without any water connection, water quality management, or freeze protection concerns. No Water Chiller Unit Water-cooled laser welders typically require a separate water chiller unit — an additional piece of equipment that:

• Adds significant cost to the total system investment
• Occupies additional floor space alongside the laser welder
• Requires its own maintenance — coolant replacement, filter cleaning, pump inspection
• Adds to the total system weight and transport complexity
• Introduces an additional potential failure point that can cause production downtime

By eliminating the need for a water chiller, the UK-MINI reduces total system cost, total system footprint, total system maintenance requirements, and total system complexity — all simultaneously. Immediate Startup Air-cooled systems reach operating temperature almost instantly — there is no need to wait for coolant to circulate and reach optimal operating temperature as with water-cooled systems. The UK-MINI is ready to weld within moments of being powered on, supporting agile, responsive production workflows where minimizing setup and startup time matters. Reduced Maintenance Burden The maintenance requirements of the UK-MINI's air cooling system are minimal:

• Periodic cleaning of the air intake filter to prevent dust accumulation that could restrict airflow and reduce cooling effectiveness
• Visual inspection of fan operation during routine maintenance checks
• No coolant replacement, no pump maintenance, no heat exchanger inspection, no water quality testing

This simplified maintenance profile reduces both the time and cost of keeping the UK-MINI in optimal operating condition — an important consideration for small workshops and businesses where maintenance resources are limited. Environmental Resilience Air cooling is inherently robust across a wide range of environmental conditions. The UK-MINI performs reliably in hot workshop environments, cold storage areas, and humid coastal or tropical climates — without the coolant management challenges that water-cooled systems face in extreme temperatures or high-humidity conditions.

Laser Power — 1000W to 2000W

The UK-MINI is available in power configurations ranging from 1000W to 2000W — a range that is carefully matched to the welding thickness and material requirements of its target applications while remaining compatible with the thermal management capabilities of the air-cooled design.

1000W Configuration

The 1000W version of the UK-MINI is optimized for:

• Welding thin-gauge stainless steel (0.5–2mm) used in kitchen equipment, home appliance shells, and decorative metalwork
• Precision welding of fine components where heat input control is critical
• Light-duty production environments with lower throughput requirements
• Applications where electrical power supply capacity is a constraint — 1000W operation draws less current than higher-power configurations
• Cost-sensitive applications where the full 2000W capability is not required for the primary welding tasks

1500W Configuration

The 1500W version represents the mid-point of the UK-MINI's power range — delivering a balanced combination of welding speed, penetration capability, and thermal management:

• Handles the full 0.5–5mm thickness range comfortably for most materials
• Supports higher travel speeds on thin materials, improving productivity
• Provides adequate penetration power for medium-gauge stainless and carbon steel
• Well-suited for mixed-material production environments where different thicknesses are processed on the same machine

2000W Configuration

The 2000W version is the highest-performance configuration of the UK-MINI — pushing the boundaries of what an air-cooled compact laser welder can deliver:

• Maximizes welding speed on thin and medium gauge materials — directly improving production throughput
• Provides full penetration capability at the upper end of the 0.5–5mm thickness range
• Enables welding of more challenging materials including aluminum alloys and galvanized steel that benefit from higher peak power availability
• Supports higher duty cycles for continuous production operations
• Delivers the most flexibility for handling a wide variety of welding tasks on a single machine

Welding Thickness Capability — 0.5mm to 5mm

The UK-MINI is rated for welding material thicknesses from 0.5mm to 5mm — a range that covers the overwhelming majority of sheet metal gauges used across its primary target industries.

Thin End — 0.5mm to 1.5mm

At the thinner end of its capability range, the UK-MINI demonstrates the fundamental advantage of laser welding over conventional processes — the ability to join very thin materials with minimal heat input, virtually eliminating the burn-through, warping, and heat discoloration that plague TIG and MIG welding of thin sheets. Applications in this range include:

• Stainless steel sinks, splashbacks, and countertops for kitchen installations
• Thin-wall home appliance housings and decorative panels
• Fine stainless steel furniture components and fixtures
• Thin automotive body panels for repair and custom fabrication
• Decorative architectural metalwork where visual quality is paramount

The UK-MINI's precise power control at these thin gauges allows operators to produce clean, narrow, aesthetically excellent weld beads with minimal post-weld finishing requirements — directly supporting the high visual quality standards demanded in kitchen, furniture, and architectural applications.

Mid-Range — 1.5mm to 3mm

This is the core working range of the UK-MINI — the thickness range most commonly encountered in its primary target industries. At these gauges, the machine delivers an excellent balance of welding speed, penetration quality, and weld bead appearance:

• Stainless steel door frames, panels, and hardware components
• Home appliance structural components — washing machine drums, refrigerator liners, oven housings
• Kitchen equipment bodies — commercial ovens, fryers, prep tables, dishwasher housings
• Automotive stamped brackets, reinforcements, and sub-frame components
• Mold components and tooling inserts for repair and modification welding

Upper Range — 3mm to 5mm

At the upper end of its rated thickness range, the UK-MINI leverages its maximum power configurations to achieve complete joint penetration on thicker structural components:

• Thick stainless steel door frames and structural elements
• Heavier automotive components and structural brackets
• Mold base materials and tooling components requiring build-up or repair welding
• Industrial equipment frames and structural supports
• Furniture frames and heavy-duty fixture components

The ability to handle material up to 5mm thick means the UK-MINI is not limited to light-duty thin sheet work — it is a genuinely capable welding tool for medium-duty structural applications as well.

Target Industries & Applications

The UK-MINI was developed with specific industries and applications in mind — sectors where its unique combination of compact size, air cooling, portability, and 1000–2000W laser power provides a compelling and highly practical solution:

1. Kitchen Equipment Manufacturing

The commercial kitchen equipment industry is one of the most natural fits for the UK-MINI. Commercial kitchens demand stainless steel equipment that is hygienic, durable, and visually clean — and the laser welding process delivers all three of these characteristics far more effectively than conventional TIG or MIG welding. The UK-MINI produces:

• Hygienic welds with smooth, low-profile bead profiles that minimize crevices where food particles and bacteria could accumulate — supporting compliance with food safety regulations
• Clean, oxidation-free weld surfaces on stainless steel that maintain the material's corrosion resistance and polished appearance — reducing or eliminating the need for post-weld pickling or passivation treatments
• Minimal heat distortion on thin stainless steel panels and sinks — preserving the flat, smooth surfaces required for professional kitchen equipment
• Aesthetically excellent weld beads on visible surfaces — supporting the premium appearance standards expected in professional commercial kitchen environments

The UK-MINI's compact size makes it easy to position at kitchen equipment assembly stations, and its air-cooled design means it can operate in the warm, humid environments typical of kitchen equipment manufacturing facilities without water cooling infrastructure concerns.

2. Home Appliance Manufacturing

Home appliance manufacturers — producing washing machines, dryers, refrigerators, dishwashers, air conditioners, microwaves, and more — use the UK-MINI for welding the stainless steel and galvanized sheet metal components that make up appliance housings, internal structural frames, and functional components. Key benefits for home appliance manufacturing:

• High-speed welding of thin appliance shells without burn-through or distortion — maintaining the dimensional accuracy of formed sheet metal components
• Clean, spatter-free welds that require no post-weld cleaning before painting, powder coating, or final assembly
• Consistent weld quality across high-volume production runs — supporting the quality consistency standards of appliance manufacturing
• Compact footprint that integrates easily into assembly line welding stations without disrupting workflow

3. Mold Repair & Tooling

Mold and die repair is a specialized but highly valuable application for the UK-MINI. When injection molds, die casting tools, or stamping dies develop cracks, wear, or surface damage, precise repair welding is required to restore the tool to serviceable condition without distorting the surrounding tool steel. The UK-MINI's laser welding process is particularly well-suited for mold repair because:

• Minimal heat input prevents thermal distortion of the surrounding mold material — critical for maintaining dimensional accuracy of the repaired mold cavity
• Precise, controlled bead placement allows repair material to be deposited exactly where needed — minimizing the amount of post-weld machining required to restore the mold surface to specification
• Small spot size enables welding in tight, confined mold features where conventional TIG welding would be difficult or impossible
• Wide material compatibility supports welding of the various tool steels, stainless steels, and specialty alloys used in mold and die construction
• Compact machine size makes the UK-MINI easy to position in the tight spaces typical of mold repair shops

4. Stainless Steel Door Manufacturing

Stainless steel door manufacturers use the UK-MINI for welding door frames, panel inserts, hinges, handles, and decorative elements. The visual quality demands of stainless steel door manufacturing are high — weld seams on visible surfaces must be smooth, narrow, and aesthetically consistent, with minimal post-weld grinding required. The UK-MINI delivers:

• Aesthetic-quality weld beads on stainless steel door surfaces that require minimal finishing
• Low distortion welding on door panels that must remain flat and true after welding
• Efficient production through high welding speed relative to TIG welding — improving throughput in door manufacturing operations
• Compact machine positioning that fits easily into door assembly jigging and fixturing setups

5. Furniture Manufacturing

Metal furniture manufacturers — producing stainless steel, carbon steel, and aluminum tables, chairs, shelving, and decorative pieces — use the UK-MINI for clean, precise welding of furniture components. The machine's ability to produce aesthetically clean welds on visible furniture surfaces — with minimal post-weld grinding and polishing required — directly improves production efficiency and finished product quality.

6. Automotive Parts Manufacturing

Automotive parts suppliers and aftermarket fabricators use the UK-MINI for welding brackets, exhaust components, custom body panels, and structural reinforcements. The machine's portability is particularly valuable in automotive applications where welding may need to be performed in different locations within a facility as different vehicle models or components are processed.

Ease of Use & Operator Experience

The UK-MINI is designed to be operated by personnel with a wide range of welding experience — from seasoned laser welding professionals to production workers with no prior laser welding background. Several design features contribute to its excellent ease of use:

Simple, Intuitive Controls

The UK-MINI's control interface provides straightforward access to the key welding parameters that operators need to adjust for different materials and thicknesses — power level, frequency, pulse width, and welding mode. The interface is designed to be clear and unambiguous, minimizing the possibility of accidental incorrect parameter entry.

Quick Setup and Changeover

Because the UK-MINI is a compact, self-contained unit with no water connections to make or break, setup at a new welding location takes only minutes — power connection, welding cable connection, gas connection, and parameter selection. Similarly, changing between different welding programs for different materials or thicknesses is fast and straightforward.

Lightweight Welding Gun

Like other members of Youkong's handheld laser welding family, the UK-MINI is equipped with a lightweight welding gun that minimizes operator fatigue during extended welding operations — supporting consistent weld quality and operator comfort throughout long production shifts.

Shielding Gas Integration

The UK-MINI supports the use of shielding gas — typically nitrogen or argon — to protect the weld pool from atmospheric oxidation during welding. This is particularly important for stainless steel welding, where oxidation discoloration (commonly known as "sugaring") on the reverse side of the weld is unacceptable in food-grade, medical, or decorative applications. The machine's gas control is integrated into the welding system, ensuring consistent gas coverage without requiring separate gas flow management by the operator.

Comparison: UK-MINI vs. Conventional Welding Alternatives

Factor	TIG Welding	MIG Welding	UK-MINI Laser Welder
Machine Size	Medium	Medium	Ultra-Compact (540×540×290mm)
Cooling Required	None/Air	None/Air	Air Only — No Water
Welding Speed	Slow	Medium	Fast
Thin Sheet Performance	Good	Poor	Excellent
Post-Weld Finishing	Significant	Extensive	Minimal
Heat Distortion	High	High	Minimal
Operator Skill Required	Very High	Medium	Low
Weld Aesthetics	Good	Moderate	Excellent
Infrastructure Required	Gas only	Gas + Wire	Power + Gas only
Portability	Good	Good	Excellent
Operating Cost	Medium	Low-Medium	Low

Comparison: UK-MINI vs. Water-Cooled Laser Welders

Factor	Water-Cooled Laser Welder	UK-MINI Air-Cooled Laser Welder
Machine Size	Large	Ultra-Compact
Cooling Infrastructure	Water chiller required	None required
Total System Weight	150–300kg+	Compact & Lightweight
Setup Time	30–60 minutes	5 minutes
Maintenance Complexity	High (coolant, pump, filters)	Low (air filter only)
Deployment Flexibility	Limited by water connections	Fully flexible
Cold Environment Operation	Freeze risk	No freeze risk
Total System Cost	Higher (chiller included)	Lower
Startup Time	Warm-up required	Immediate
