Product Overview

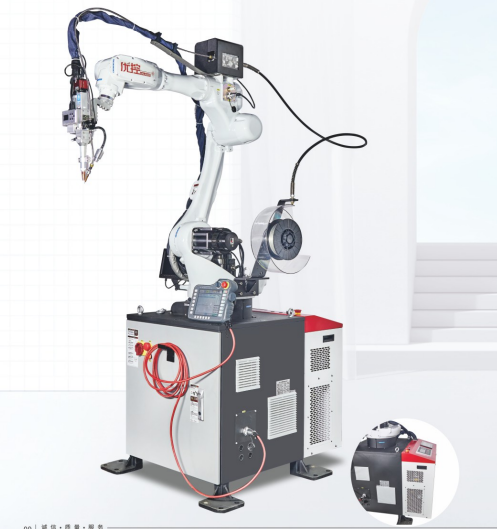

The UK-YT-JXH15 Integrated Robot Welding Machine is a cutting-edge, all-in-one robotic laser welding solution engineered by Youkong (优控) for modern industrial manufacturing environments. As its name implies — "一体式" meaning "integrated" or "all-in-one" — this machine consolidates the laser source, robotic manipulator, control system, and cooling system into a single compact, unified platform. This design philosophy eliminates the complexity of multi-component setups, dramatically simplifies installation, reduces floor space requirements, and accelerates deployment time on the production floor.

The UK-YT-JXH15 is built for manufacturers who demand precision, speed, and consistency in their welding operations — particularly in industries where product quality, repeatability, and throughput are mission-critical. It bridges the gap between large-scale industrial robot welding systems and compact, cost-efficient automation — making advanced robotic laser welding accessible to a broader range of manufacturers, from mid-size fabricators to large-scale production facilities.

The "Integrated" Advantage — What Sets It Apart

Traditional robotic welding setups require separate procurement, installation, and integration of multiple independent systems: the laser generator, the robotic arm, the control cabinet, the water cooling unit, and the welding head. Each component must be individually sourced, configured, cabled, and tested — a process that is time-consuming, costly, and requires specialized engineering expertise.

The UK-YT-JXH15 eliminates all of this complexity through its fully integrated architecture:

• All major components are pre-assembled, pre-calibrated, and factory-tested before shipment
• A single power connection and minimal setup is required on-site
• The unified control system manages the laser, robot motion, and process parameters from one interface
• Maintenance is simplified because all components are designed to work together as a system
• Footprint is significantly reduced compared to equivalent multi-unit setups

This makes the UK-YT-JXH15 not only faster to deploy but also easier to operate, maintain, and relocate within a facility as production needs evolve.

Laser Power & Performance

The UK-YT-JXH15 operates within a power range of 1500W to 2000W, carefully selected to balance energy efficiency with welding performance across the range of materials and thicknesses it is designed to handle. This power range is ideal for:

• Precision welding of thin to medium gauge metals where controlled heat input is essential
• High-speed production welding where cycle time is a priority
• Clean, low-spatter welds that minimize or eliminate post-weld finishing requirements

The fiber laser technology at the core of the UK-YT-JXH15 delivers a high-quality beam with excellent focus characteristics, ensuring deep, consistent weld penetration with a narrow heat-affected zone (HAZ). This is especially important when welding materials prone to thermal distortion, such as thin aluminum sheets or stainless steel panels used in appliance and elevator manufacturing.

Welding Thickness Capability

The machine is recommended for welding material thicknesses in the range of 0.5mm to 5mm, covering the most common sheet metal gauges used across its target industries:

• 0.5mm – 1.5mm: Ultra-thin sheet welding for electronic enclosures, fine appliance components, and decorative metalwork. At this range, the machine's precise power control and small spot size prevent burn-through and ensure clean aesthetics.
• 1.5mm – 3mm: Mid-range sheet metal for structural panels, automotive components, elevator doors, and HVAC assemblies — the sweet spot for high-speed, high-quality production welding.
• 3mm – 5mm: Heavier gauge work including machine frames, brackets, structural supports, and thicker automotive or industrial parts where deeper weld penetration is needed.

This thickness range ensures the UK-YT-JXH15 is a practical and versatile tool for the majority of real-world production scenarios encountered in its target industries.

Repeat Positioning Accuracy — ±0.05mm

One of the most technically impressive specifications of the UK-YT-JXH15 is its repeat positioning accuracy of ±0.05mm. This is a testament to the quality of the robotic arm's servo drive system, mechanical construction, and control algorithms.

To put this into perspective, 0.05mm is approximately the width of a human hair. This level of repeatability means:

• Every weld is placed in exactly the same position on every single part, regardless of how many thousands of cycles the robot completes
• Joint tracking is consistent, even on complex 3D weld paths
• Dimensional tolerances of finished assemblies are maintained across entire production batches
• Weld defects caused by positional drift — a common issue with manual welding — are completely eliminated

This precision is especially critical in industries such as aerospace, where structural welds must meet exact dimensional specifications, and automotive manufacturing, where body panel welds must align perfectly for fit and finish. It also benefits elevator manufacturing and home appliance production, where visual weld quality on visible surfaces directly impacts product perception and brand reputation.

Robotic Manipulator — 1.55m Travel Range

The UK-YT-JXH15 is equipped with a robotic manipulator arm with a reach of 1.55 meters, providing excellent workspace coverage for a compact integrated system. This travel range enables the robot to:

• Access all faces and joints of medium to large workpieces without repositioning the part
• Execute complex, multi-pass weld programs across large assemblies in a single setup
• Handle a wide variety of part sizes and shapes — from small precision components to larger structural assemblies
• Perform 3D spatial welding paths that follow curved surfaces, angular joints, and multi-plane geometries

The manipulator is a multi-axis articulated arm, providing full spatial freedom of movement. Its joints are driven by precision servo motors with high-resolution encoders, which together deliver the ±0.05mm repeatability that defines this machine's performance. The arm can be programmed via direct teach (manual guiding or pendant programming) or via offline simulation software, allowing engineers to develop and test complex weld programs without interrupting production.

All-in-One Control System

The integrated control system is the brain of the UK-YT-JXH15, unifying the management of all machine subsystems into a single, user-friendly interface. Key control features include:

• Laser parameter control: Power, frequency, pulse width, waveform, and modulation settings are all adjustable through the touchscreen interface
• Robot motion programming: Weld path teaching, speed control, approach/departure trajectories, and multi-program storage
• Process monitoring: Real-time feedback on laser output, robot position, temperature, and system status
• Safety interlocks: Automatic shutdown protocols for laser faults, over-temperature conditions, door/enclosure breach, and emergency stop activation
• Program library: Multiple weld programs can be stored and recalled instantly, enabling rapid product changeover on mixed-production lines

The intuitive interface reduces operator training time significantly — new operators can learn to run standard programs quickly, while experienced engineers have full access to advanced parameter adjustment for process optimization.

Target Industries & Applications

The UK-YT-JXH15 was specifically designed with four key industries in mind, each with demanding quality and productivity requirements:

1. Aerospace (航空航天)

In aerospace manufacturing, precision and reliability are non-negotiable. The UK-YT-JXH15's ±0.05mm repeatability and stable laser output make it suitable for welding lightweight alloy components, structural brackets, fuel system parts, and instrumentation housings. The machine's ability to produce narrow, deep welds with minimal heat distortion is critical for maintaining the structural integrity of aerospace-grade aluminum and alloy steel assemblies.

2. Automotive Manufacturing (汽车制造)

The automotive industry demands high-speed, high-volume welding with zero tolerance for defects. The UK-YT-JXH15 supports the welding of body panels, door frames, seat structures, exhaust components, and battery module housings for electric vehicles. Its robotic automation eliminates human variability, reduces cycle times, and ensures every part meets the same exacting standards — essential for automotive production lines running thousands of units per day.

3. Elevator Manufacturing (电梯制造)

Elevator components such as door panels, cabin walls, frame structures, and guide rail brackets require clean, strong, and aesthetically consistent welds. The UK-YT-JXH15's precision and clean laser weld quality produce smooth, spatter-free joints on stainless steel and carbon steel elevator components — reducing or eliminating the need for post-weld grinding and polishing, which is a major cost and time saving in elevator panel production.

4. Home Appliance Manufacturing (家用电器)

The home appliance sector — including washing machines, refrigerators, air conditioners, microwaves, and dishwashers — requires high-volume, aesthetically clean welds on thin stainless steel and galvanized sheet metal. The UK-YT-JXH15's gentle yet precise welding at 1500–2000W ensures thin appliance shells and internal components are welded without burn-through, discoloration, or distortion — maintaining the visual quality standards expected by consumers.

Safety & Reliability

As a fully integrated laser robotic system, the UK-YT-JXH15 incorporates comprehensive safety features:

• Enclosed laser safety design minimizes operator exposure to laser radiation
• Automated interlock systems prevent machine operation when safety enclosures are open
• Over-temperature protection for both the laser source and robotic arm servo systems
• Emergency stop (E-stop) functionality accessible at multiple points around the machine
• Fault detection and alarm systems provide real-time notifications and diagnostic codes for rapid troubleshooting

These features not only protect operators but also safeguard the machine itself, ensuring maximum uptime and long service life.
